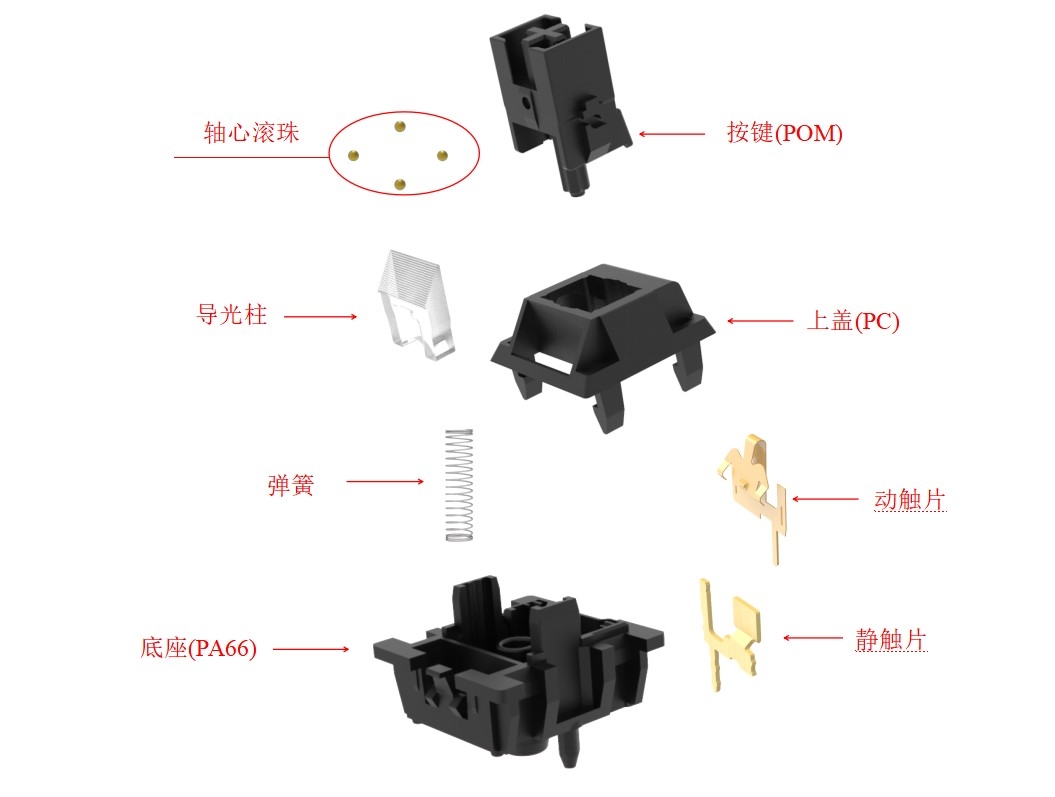

Axis ball positioning
The base ball bearings have been removed, retaining only the axial ball bearing structure, optimizing overall response efficiency while maintaining a ***smooth feel.
RGB Independent Light Guide
Featuring built-in independent light guide columns for even and soft lighting, it supports a full-color RGB backlight system to create an immersive visual lighting experience.
Extended Spring and Stem
Featuring an extended stem and custom elongated spring, delivering a crisp and full bottom-out sound while providing a more distinctive, multi-layered rebound feel.
Factory Lubrication & 5-Pin Mounting
Pre-lubricated for precision right out of the factory, ready to use upon arrival; designed with a five-pin positioning structure for secure installation, compatible with mainstream PCBs.
Switch Type / Actuation Force
Linear switch / 42±10gf
Bottom-Out Force / Actuation Travel
55±10gf / 2.0±0.5mm
Bottom stroke / Service life
3.7±0.5mm / ≥50 million keystrokes
